Description

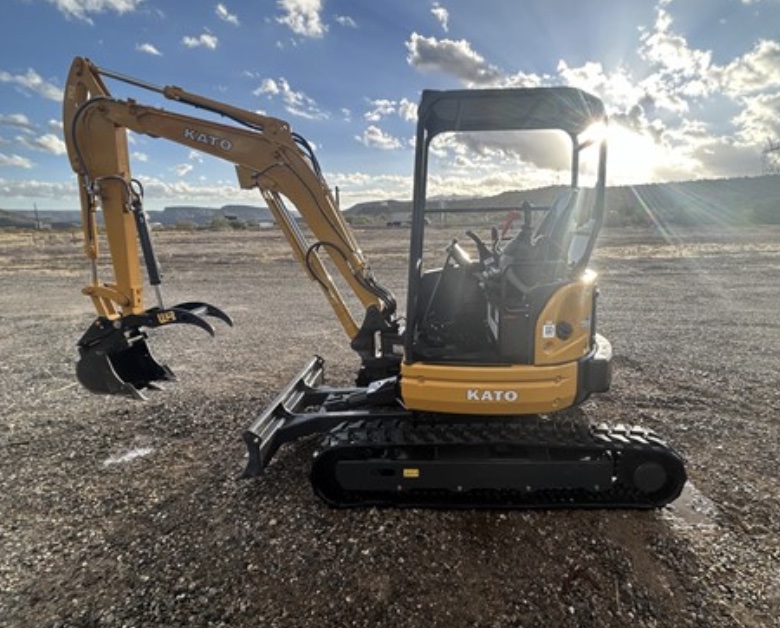

Kato 17 Mini X
12 inch wide bucket
Transport Weight: 3,924 lbs.
The KATO HD17V5 mini excavator’s key specs include an operating weight of 4,261 lbs (1,780 kg), a bucket capacity of 1.6 ft³ (0.044 m³), and a Yanmar 3TNV74 engine. It features a swing speed of 8.5 rpm and travel speeds of 1.3 mph (low) and 2.5 mph (high). The machine also boasts a bucket digging force of 4,842 lbs (15.7 kN).

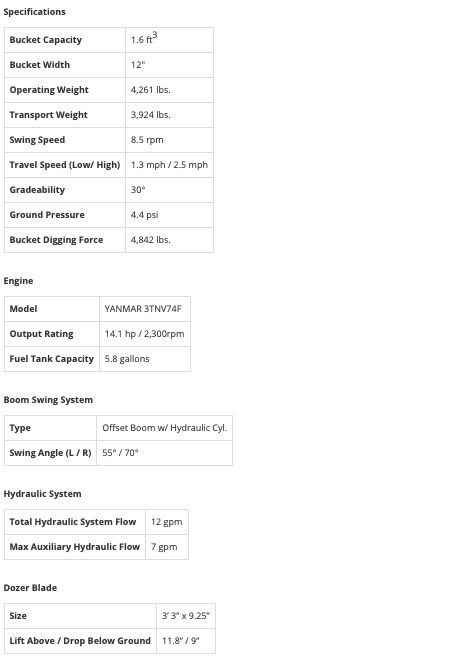

Here’s a more detailed breakdown of the specifications:
Performance & Weight:
Operating Weight: 4,261 lbs (1,780 kg).
Transport Weight: 3,224 lbs.
Bucket Capacity: 1.6 ft³ (0.044 m³).
Swing Speed: 8.5 rpm.
Travel Speed: 1.3 mph (low) / 2.5 mph (high).
Bucket Digging Force: 4,842 lbs (15.7 kN).
Ground Pressure: 4.4 psi.
Gradeability: 30°.
Engine & Dimensions:
Engine: Yanmar 3TNV74.
Engine Output: 10.5 kW / 2,300 min⁻¹.
Bucket Width: 12 inches.
Fuel Tank Capacity: 22L.

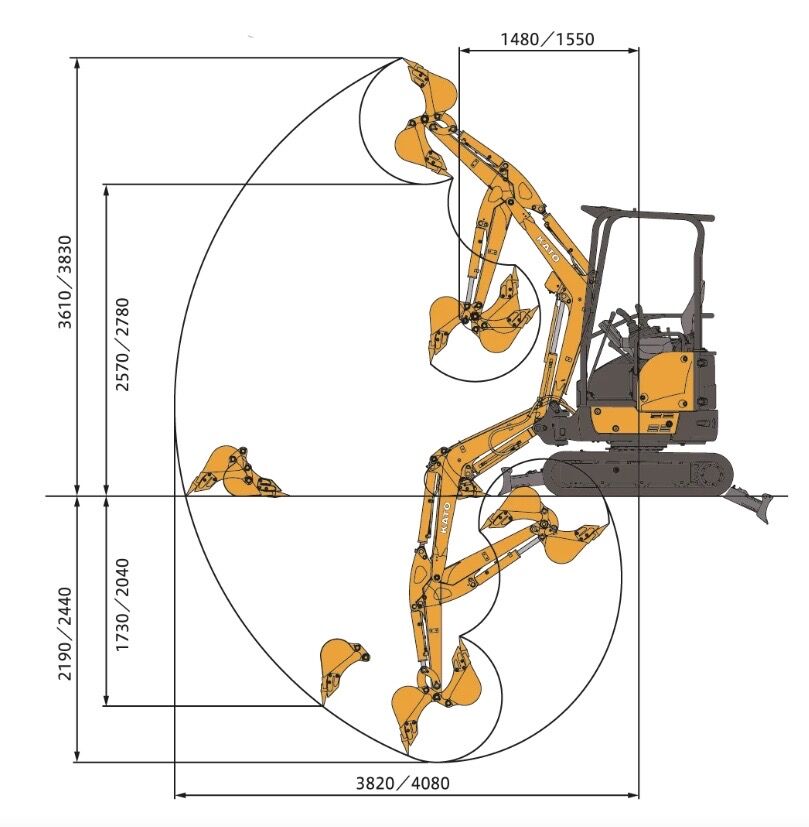

Max. Digging Depth: 2,190 mm.
Max. Digging Radius: 3830 mm.
Max. Digging Height: 3830 mm.
Track Width: 990-1300 mm.
Other Notable Features:
Four-Post ROPS Canopy .
Expanding Tracks .
Hydraulic System: 3000 psi.
