Description
13 Mini X
12 inch or 18 inch wide bucket available
Transport Weight: 2,281 lbs.
Description

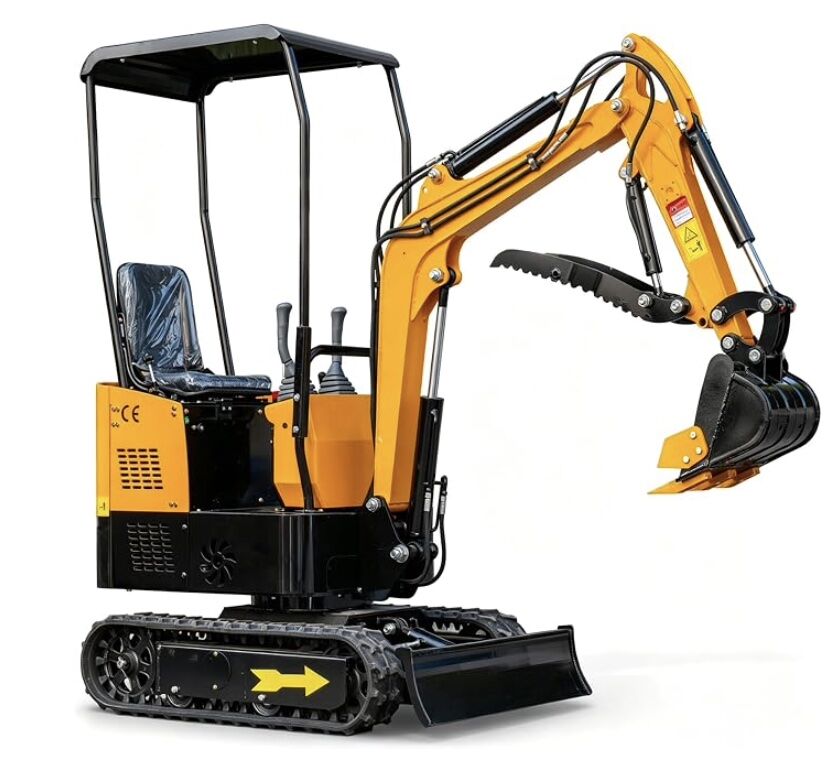

SD13T Mini Excavator, 13.6 HP Briggs & Stratton Engine Gas, Pilot Operated Controls, Auxiliary Hydraulics Equipped, Back Fill Blade, Rubber Tracks, Pin on Digging Bucket, 2,281 Pounds Class

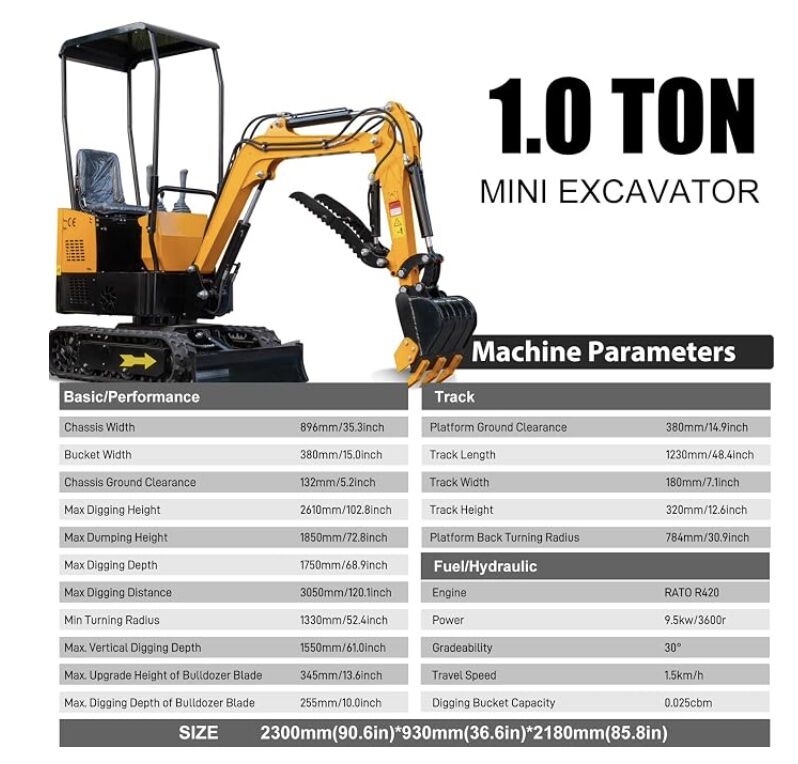

Specifications
Manufacturer SDX CONSTRUCTION
Model: SD13T
Operating Weight 2,281 lb
Exterior
ROPS Type Open
Engine
Horsepower 13.6 HP
Engine Briggs & Stratton gas
Operating Weight: 1.3ton
Bucket Capacity 0.028m³
Rated Power 10kw
Max.Hydraulic System Pressure 16mpa
Max. Grade ability 30°
Max. Ground Pressure 18.9N/m²
Max Walking Speed 2.1Km/h
Max. Traction 9.2KN
Platform Rotary Speed 9-11r/min
Boom swing function, yes
Dimensions
Overall Length 3.1 ft
Overall Width 3.0 feet
Overall Height 5.1 ft/ 6.8 ft (Chair/Roof)
Arm Length 31.5 in
Boom Length 4.8 ft
Track Length 4.0 ft
Track Width 4.1 ft
Ground Clearance 8.5 in
Platform Width 36.0 inPlatform Ground Clearance 420mm
Bucket Width 12 in, 18 in
Working range:
Max Digging Depth 5.5 ft
Max. Digging Radius 9.6 ft
Max Dumping Height 5.8 ft
Max. The sinking Depth of the Bulldozer is 8.2 inches175
Machine configure
Engine Model Briggs & Stratton
